ProgressRing

Examples#

Live example

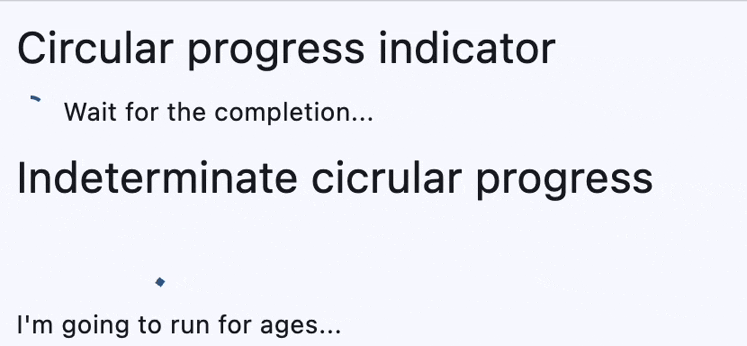

Determinate and indeterminate progress rings#

import asyncio

import flet as ft


async def main(page: ft.Page):
    page.add(
        ft.Text(
            value="Circular progress indicator",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.Row(
            controls=[
                determinate_ring := ft.ProgressRing(
                    width=16, height=16, stroke_width=2
                ),
                determinate_message := ft.Text("Wait for the completion..."),
            ]
        ),
        ft.Text(
            value="Indeterminate cicrular progress",
            theme_style=ft.TextThemeStyle.HEADLINE_SMALL,
        ),
        ft.Column(
            horizontal_alignment=ft.CrossAxisAlignment.CENTER,
            controls=[ft.ProgressRing(), ft.Text("I'm going to run for ages...")],
        ),
    )

    for i in range(0, 101):
        determinate_ring.value = i * 0.01
        await asyncio.sleep(0.1)
        if i == 100:
            determinate_message.value = "Finished!"
        page.update()


ft.run(main)

determinate-and-indeterminate

Gauge with progress#

import flet as ft


def main(page: ft.Page):
    page.add(
        ft.Stack(
            width=100,
            height=100,
            controls=[
                ft.Container(content=ft.Text("60%"), alignment=ft.Alignment.CENTER),
                ft.ProgressRing(value=0.6, width=100, height=100),
            ],
        )
    )


ft.run(main)

ProgressRing #

Bases: LayoutControl

A material design circular progress indicator, which spins to indicate that the application is busy.

A control that shows progress along a circle.

align #

align: Alignment | None = None

Alignment of the control within its parent.

animate_align #

animate_align: AnimationValue | None = None

Enables implicit animation of the [align][flet.LayoutControl.] property.

More information here.

animate_margin #

animate_margin: AnimationValue | None = None

Enables implicit animation of the [margin][flet.LayoutControl.] property.

More information here.

animate_offset #

animate_offset: AnimationValue | None = None

Enables implicit animation of the [offset][flet.LayoutControl.] property.

More information here.

animate_opacity #

animate_opacity: AnimationValue | None = None

Enables implicit animation of the [opacity][flet.LayoutControl.] property.

More information here.

animate_position #

animate_position: AnimationValue | None = None

Enables implicit animation of the positioning properties ([left][flet.LayoutControl.], [right][flet.LayoutControl.], [top][flet.LayoutControl.] and [bottom][flet.LayoutControl.]).

More information here.

animate_rotation #

animate_rotation: AnimationValue | None = None

Enables implicit animation of the [rotate][flet.LayoutControl.] property.

More information here.

animate_scale #

animate_scale: AnimationValue | None = None

Enables implicit animation of the [scale][flet.LayoutControl.] property.

More information here.

animate_size #

animate_size: AnimationValue | None = None

TBD

aspect_ratio #

aspect_ratio: Number | None = None

The aspect ratio of the control. It is defined as the ratio of the width to the height.

badge #

badge: BadgeValue | None = None

A badge to show on top of this control.

bgcolor #

bgcolor: ColorValue | None = None

Color of the circular track being filled by the circular indicator.

bottom #

bottom: Number | None = None

The distance that the child's bottom edge is inset from the bottom of the stack.

Note

Effective only if this control is a descendant of one of the following: [Stack][flet.] control, [Page.overlay][flet.] list.

col #

col: ResponsiveNumber = 12

If a parent of this control is a [ResponsiveRow][flet.], this property is used to determine how many virtual columns of a screen this control will span.

Can be a number or a dictionary configured to have a different value for specific breakpoints, for example col={"sm": 6}.

This control spans the 12 virtual columns by default.

Dimensions
Breakpoint Dimension
xs <576px
sm ≥576px
md ≥768px
lg ≥992px
xl ≥1200px
xxl ≥1400px

color #

color: ColorValue | None = None

The progress indicator's color.

data #

data: Any = skip_field()

Arbitrary data of any type.

disabled #

disabled: bool = False

Every control has disabled property which is False by default - control and all its children are enabled.

Note

The value of this property will be propagated down to all children controls recursively.

Example

For example, if you have a form with multiple entry controls you can disable them all together by disabling container:

ft.Column(
    disabled = True,
    controls=[
        ft.TextField(),
        ft.TextField()
    ]
)

expand #

expand: bool | int | None = None

Specifies whether/how this control should expand to fill available space in its parent layout.

More information here.

Note

Has effect only if the direct parent of this control is one of the following controls, or their subclasses: [Column][flet.], [Row][flet.], [View][flet.], [Page][flet.].

expand_loose #

expand_loose: bool = False

Allows the control to expand along the main axis if space is available, but does not require it to fill all available space.

More information here.

Note

If expand_loose is True, it will have effect only if:

  • expand is not None and
  • the direct parent of this control is one of the following controls, or their subclasses: [Column][flet.], [Row][flet.], [View][flet.], [Page][flet.].

height #

height: Number | None = None

Imposed Control height in virtual pixels.

key #

key: KeyValue | None = None

left #

left: Number | None = None

The distance that the child's left edge is inset from the left of the stack.

Note

Effective only if this control is a descendant of one of the following: [Stack][flet.] control, [Page.overlay][flet.] list.

margin #

margin: MarginValue | None = None

Sets the margin of the control.

offset #

offset: OffsetValue | None = None

Applies a translation transformation before painting the control.

The translation is expressed as an Offset scaled to the control's size. So, Offset(x=0.25, y=0), for example, will result in a horizontal translation of one quarter the width of this control.

Example

The following example displays container at 0, 0 top left corner of a stack as transform applies -1 * 100, -1 * 100 (offset * control's size) horizontal and vertical translations to the control:

import flet as ft

def main(page: ft.Page):
    page.add(
        ft.Stack(
            width=1000,
            height=1000,
            controls=[
                ft.Container(
                    bgcolor="red",
                    width=100,
                    height=100,
                    left=100,
                    top=100,
                    offset=ft.Offset(-1, -1),
                )
            ],
        )
    )

ft.run(main)

on_animation_end #

on_animation_end: (
    ControlEventHandler[LayoutControl] | None
) = None

Called when animation completes.

Can be used to chain multiple animations.

The data property of the event handler argument contains the name of the animation.

More information here.

opacity #

opacity: Number = 1.0

Defines the transparency of the control.

Value ranges from 0.0 (completely transparent) to 1.0 (completely opaque without any transparency).

padding #

padding: PaddingValue | None = None

The padding around the indicator track.

If None, ProgressIndicatorTheme.circular_track_padding is used.

If that's is also None and year_2023 is False, defaults to Padding.all(4.0).

Otherwise, defaults to Padding.all(0.0).

page #

page: Page | BasePage | None

The page to which this control belongs to.

parent #

parent: BaseControl | None

The direct ancestor(parent) of this control.

It defaults to None and will only have a value when this control is mounted (added to the page tree).

The Page control (which is the root of the tree) is an exception - it always has parent=None.

right #

right: Number | None = None

The distance that the child's right edge is inset from the right of the stack.

Note

Effective only if this control is a descendant of one of the following: [Stack][flet.] control, [Page.overlay][flet.] list.

rotate #

rotate: RotateValue | None = None

Transforms this control using a rotation around its center.

The value of rotate property could be one of the following types:

  • number - a rotation in clockwise radians. Full circle 360° is math.pi * 2 radians, 90° is pi / 2, 45° is pi / 4, etc.
  • Rotate - allows to specify rotation angle as well as alignment - the location of rotation center.
Example

For example:

ft.Image(
    src="https://picsum.photos/100/100",
    width=100,
    height=100,
    border_radius=5,
    rotate=Rotate(angle=0.25 * pi, alignment=ft.Alignment.CENTER_LEFT)
)

rtl #

rtl: bool = False

Whether the text direction of the control should be right-to-left (RTL).

scale #

scale: ScaleValue | None = None

Scales this control along the 2D plane. Default scale factor is 1.0, meaning no-scale.

Setting this property to 0.5, for example, makes this control twice smaller, while 2.0 makes it twice larger.

Different scale multipliers can be specified for x and y axis, by setting Control.scale property to an instance of Scale class. Either scale or scale_x and scale_y could be specified, but not all of them.

Example
ft.Image(
    src="https://picsum.photos/100/100",
    width=100,
    height=100,
    border_radius=5,
    scale=ft.Scale(scale_x=2, scale_y=0.5)
)

semantics_label #

semantics_label: str | None = None

Used to identify the purpose of this progress bar for screen reading software.

semantics_value #

semantics_value: Number | None = None

Used for determinate progress indicators to indicate how much progress has been made.

size_constraints #

size_constraints: BoxConstraints | None = None

Defines the minimum and maximum size of the progress indicator.

If None, ProgressIndicatorTheme.size_constraints is used.

If that's is also None, defaults to a minimum width and height of 36.

stroke_align #

stroke_align: Number | None = None

The relative position of the stroke.

Value typically ranges be -1.0 (inside stroke) and 1.0 (outside stroke).

A value of 0 (center stroke) will center the border on the edge of the control.

If ProgressRing.year_2023 is True, then the default value is 0. Otherwise, the default value is -1.

stroke_cap #

stroke_cap: StrokeCap | None = None

The progress indicator's line ending.

stroke_width #

stroke_width: Number | None = None

The width of the line used to draw the circle.

tooltip #

tooltip: TooltipValue | None = None

The tooltip ot show when this control is hovered over.

top #

top: Number | None = None

The distance that the child's top edge is inset from the top of the stack.

Note

Effective only if this control is a descendant of one of the following: [Stack][flet.] control, [Page.overlay][flet.] list.

track_gap #

track_gap: Number | None = None

The gap between the active indicator and the background track.

If year_2023 is True or Theme.use_material3 is False, then no track gap will be drawn.

Set track_gap to 0 to hide this track gap.

If None, ProgressIndicatorTheme.track_gap is used.

If that's is also None, defaults to 4.0.

value #

value: Number | None = None

The value of this progress indicator.

A value of 0.0 means no progress and 1.0 means that progress is complete. The value will be clamped to be in the range 0.0 - 1.0. If None, this progress indicator is indeterminate, which means the indicator displays a predetermined animation that does not indicate how much actual progress is being made.

visible #

visible: bool = True

Every control has visible property which is True by default - control is rendered on the page. Setting visible to False completely prevents control (and all its children if any) from rendering on a page canvas. Hidden controls cannot be focused or selected with a keyboard or mouse and they do not emit any events.

width #

width: Number | None = None

Imposed Control width in virtual pixels.

year_2023 #

year_2023: bool | None = None

If this is set to False, the ProgressRing will use the latest Material Design 3 appearance, which was introduced in December 2023.

When True, the ProgressRing will use the 2023 Material Design 3 appearance.

If not set, then the ProgressIndicatorTheme.year_2023 will be used, which is False by default.

If Theme.use_material3 is False, then this property is ignored.

before_event #

before_event(e: ControlEvent)

before_update #

before_update()

build #

build()

Called once during control initialization to define its child controls. self.page is available in this method.

clean #

clean() -> None

did_mount #

did_mount()

init #

init()

is_isolated #

is_isolated()

update #

update() -> None

will_unmount #

will_unmount()
